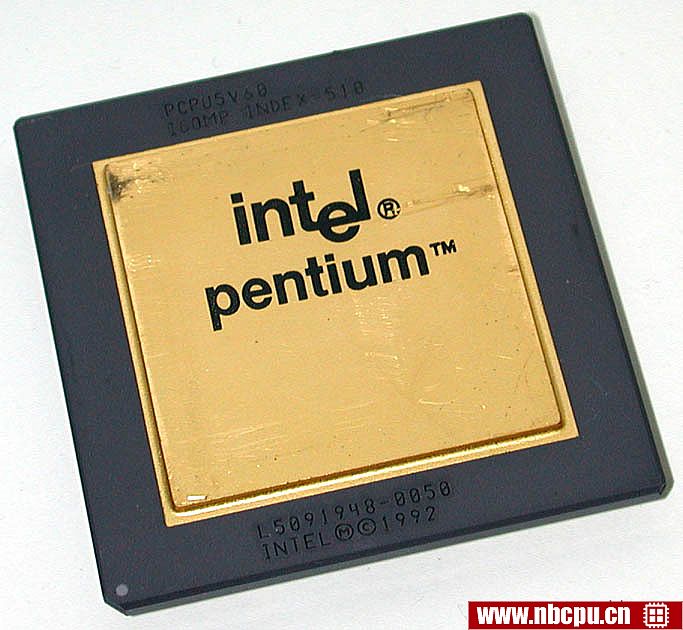

Intel Pentium 60 - PCPU5V60笔记本cpu

类型	CPU / Microprocessor
细分市场	Desktop
系列	Intel Pentium
CPU 编号	PCPU5V60 is an OEM/tray microprocessor
频率	60 MHz
总线速度	60 MHz
时钟倍频器	1
封装	273-pin ceramic Pin Grid Array 2.16" x 2.16" (5.49 cm x 5.49 cm)
接口	接口 4
发布时间	22-Mar-93
ICOMP index	510
Upgrade options	Pentium overdrive 133
架构 / 微体系结构
微体系结构	P5
处理器内核	P5
制造工艺	0.8 micron BiCMOS process, 3.1 million transistors
数据位宽	32 bit
Data bus width	64 bit
浮点单元	Integrated
1级缓存大小	8 KB 2-way set associative code cache 8 KB 2-way set associative write-back data cache
Physical memory	4 GB
多重处理	Up to 2 processors
低功耗特性	System Management Mode SL power-management features
On-chip peripherals	Memory Management Unit Local Advanced Programmable Interrupt Controller
电/热参数
V核	5V ± 5%
最小/最大工作温度	0°C - 80°C
Typical/Maximum power dissipation	11.9 Watt / 15.28 Watt
热设计功耗	14.6 Watt
Notes on Intel Pentium 60 MHz
Minimum bus frequency is 30 MHz The processor is not marked with a S-Spec number
