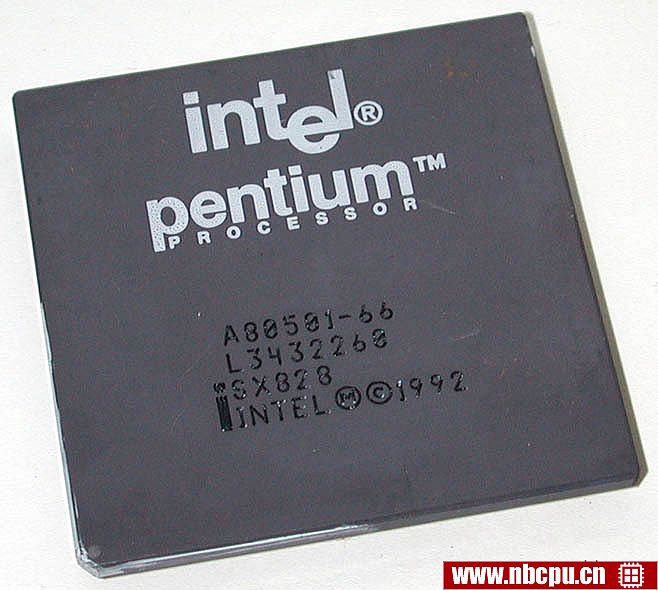

Intel Pentium 66 - A80501-66笔记本cpu

类型

CPU / Microprocessor

细分市场

Desktop

系列

Intel Pentium

CPU 编号

A80501-66 is an OEM/tray microprocessor

频率

66 MHz

总线速度

66 MHz

时钟倍频器

封装

273-pin ceramic Pin Grid Array
2.16" x 2.16" (5.49 cm x 5.49 cm)

接口

接口 4

发布时间

22-Mar-93

ICOMP index

567

Upgrade options

Pentium overdrive 133

S规格号

	ES/QS处理器
部件号	Q0353	Q0395	Q0413	Q0467	Q0626	Q0627
A80501-66	+	+	+	+	+	+

	生产处理器
部件号	SX754	SX828	SX836	SX837	SX949	SX950	SZ950
A80501-66	+	+	+	+	+	+	+

架构 / 微体系结构

微体系结构

处理器内核

核心步进

B1" (Q0413, SX754)
B1' (Q0353, Q0395)
C1 (Q0467, SX837, SZ950)
D1 (Q0626, Q0627, SX949, SX950)

CPUIDs

513 (Q0353, Q0395, Q0413, SX754)
515 (Q0467, SX837, SZ950)
517 (Q0626, Q0627, SX949, SX950)

制造工艺

0.8 micron BiCMOS process, 3.1 million transistors

数据位宽

32 bit

Data bus width

64 bit

浮点单元

Integrated

1级缓存大小

8 KB 2-way set associative code cache
8 KB 2-way set associative write-back data cache

Physical memory

4 GB

多重处理

Up to 2 processors

低功耗特性

System Management Mode
SL power-management features

On-chip peripherals

Memory Management Unit
Local Advanced Programmable Interrupt Controller

电/热参数

V核

5.15V ± 5%

最小/最大工作温度

0°C - 70°C
75°C

Typical/Maximum power dissipation

13 Watt / 17.28 Watt

热设计功耗

16 Watt

Notes on Intel Pentium 66 MHz

Minimum bus frequency is 33 MHz
Different S-Spec 号码 have different maximum operating temperature. Please follow S-spec links for more accurate information
There were versions of Pentium 66 processor with different voltage ranges. Please consult S-Spec page to determine exact voltage range for your CPU.
