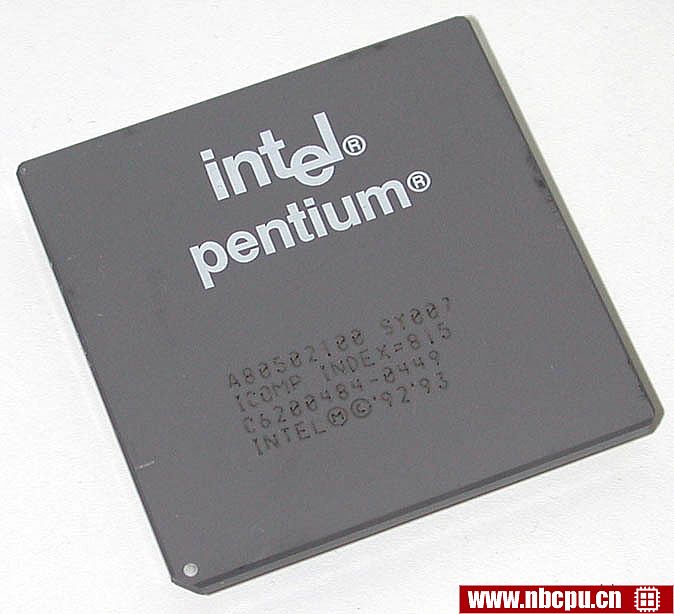

Intel Pentium 100 - A80502-100 / A80502100笔记本cpu

类型

CPU / Microprocessor

细分市场

Desktop

系列

Intel Pentium

CPU部件号

A80502100 is an OEM/tray microprocessor
A80502-100 is an OEM/tray microprocessor
A8050250-100 is an OEM/tray microprocessor with 50 MHz FSB
A8050266-100 is an OEM/tray microprocessor with 66 MHz FSB

频率

100 MHz

总线速度

66 MHz
50 MHz

时钟倍频器

1.5 (66 MHz FSB)
2 (50 MHz FSB)

封装

296-pin Ceramic Staggered Pin Grid Array (SPGA)
1.95" x 1.95" (4.95 cm x 4.95 cm)

接口s

接口 5
接口 7

发布时间

7-Mar-94

ICOMP 2 index

Upgrade options

Pentium overdrive 166
Pentium MMX overdrive 166
Pentium MMX overdrive 200

S规格号

	ES/QS处理器
部件号	Q0563	Q0587	Q0614	Q0656	Q0657	Q0658	Q0673	Q0674
A80502-100			+	+	+	+
A80502100
A8050250-100								+
A8050266-100	+	+					+

	ES/QS处理器						生产处理器
部件号	Q0677	Q0678	Q0697	Q0698	Q0784	Q0961	SX886	SX910
A80502-100	+		+	+	+	+	+	+
A80502100
A8050250-100
A8050266-100		+

	生产处理器
部件号	SX956	SX960	SX962	SX963	SX970	SY007
A80502-100	+	+	+	+	+	+
A80502100	+
A8050250-100
A8050266-100

架构 / 微体系结构

微体系结构

处理器内核

P54C

核心步进

B1 (Q0563, Q0587, Q0614, SX886, SX910)
B3 (Q0677, SX960)
B5 (Q0656, Q0657, Q0658, SX962)
C2 (Q0697, Q0698, SX963, SX970)
E0 (Q0784, SY007)

CPUIDs

521 (Q0563, Q0587, Q0614, SX886, SX910)
522 (Q0677, SX960)
524 (Q0656, Q0657, Q0658, SX962)
525 (Q0697, Q0698, SX963, SX970)
526 (Q0784, SY007)
2524 (Q0656, Q0657, Q0658, SX962)
2525 (Q0697, Q0698, SX963, SX970)
2526 (Q0784, SY007)

制造工艺

0.6 micron
3.2 million transistors

数据位宽

32 bit

Data bus width

64 bit

浮点单元

Integrated

1级缓存大小

8 KB 2-way set associative code cache
8 KB 2-way set associative write-back data cache

Physical memory

4 GB

多重处理

Up to 2 processors

低功耗特性

System Management Mode
Clock Control
SL power-management features

On-chip peripherals

Memory Management Unit
Local Advanced Programmable Interrupt Controller

电/热参数

Min/Recommended/Max V核

3.135V / 3.3V / 3.6V

最小/最大工作温度

0°C - 70°C

Minimum/Typical/Maximum power dissipation

1.55 Watt / 3.9 Watt / 11.7 Watt

热设计功耗

10.1 Watt

Notes on Intel Pentium 100 MHz

Minimum bus frequency is 25 MHz
There is a mobile Pentium processor with the same 编号. Please use processor specification number to distinguish between desktop and mobile processors.
