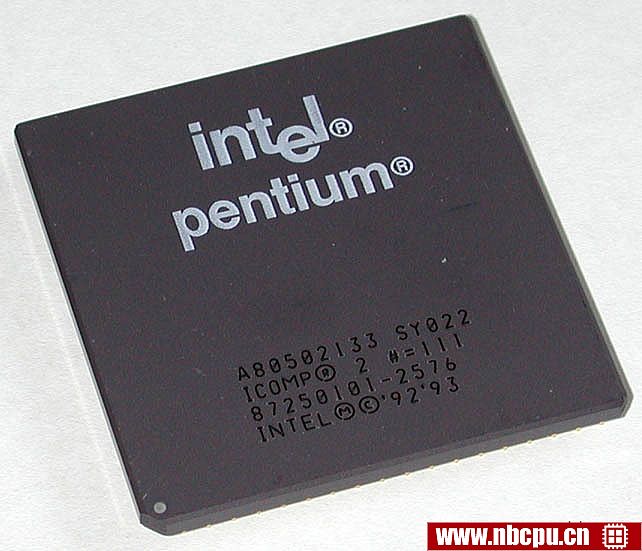

Intel Pentium 133 - A80502133 / A80502-133笔记本cpu

类型

CPU / Microprocessor

细分市场

Desktop

系列

Intel Pentium

CPU部件号

A80502133 is an OEM/tray microprocessor
A80502-133 is an OEM/tray microprocessor

频率

133 MHz

总线速度

66 MHz

时钟倍频器

封装

296-pin Ceramic Staggered Pin Grid Array (SPGA)
1.95" x 1.95" (4.95 cm x 4.95 cm)

接口s

接口 5
接口 7

发布时间

1-Jun-95

ICOMP 2 index

111

Upgrade options

Pentium MMX overdrive 166
Pentium MMX overdrive 200

S规格号

	ES/QS处理器
部件号	Q0733	Q0751	Q0772	Q0773	Q0774	Q0775	Q0843	Q0844
A80502-133	+	+	+	+	+	+	+	+
A80502133	+	+	+	+	+	+	+	+

	ES/QS处理器	生产处理器
部件号	Q0877	S106J	SK098	SK106	SK106J	SK107	SY022	SY023
A80502-133	+	+	+	+	+	+	+	+
A80502133	+	+	+	+	+	+	+	+

	生产处理器
部件号	SY082	SY126
A80502-133	+
A80502133	+	+

架构 / 微体系结构

微体系结构

处理器内核

P54CS

核心步进

B1 (Q0877)
C2 (Q0733, Q0751, Q0775, SK098)
cB1 (Q0772, Q0773, Q0774, S106J, SK106, SK106J, SK107)
cC0 (Q0843, Q0844, SY022, SY023)

CPUIDs

525 (Q0733, Q0751, Q0775, SK098)
52B (Q0772, Q0773, Q0774, S106J, SK106, SK106J, SK107)
52C (Q0843, Q0844, SY022, SY023)
252B (Q0772, Q0773, Q0774, S106J, SK106, SK106J, SK107)
252C (Q0843, Q0844, SY022, SY023)

制造工艺

0.35 micron
3.3 million transistors

数据位宽

32 bit

Data bus width

64 bit

浮点单元

Integrated

1级缓存大小

8 KB 2-way set associative code cache
8 KB 2-way set associative write-back data cache

Physical memory

4 GB

多重处理

Up to 2 processors

低功耗特性

System Management Mode
Clock Control
SL power-management features

On-chip peripherals

Memory Management Unit
Local Advanced Programmable Interrupt Controller

电/热参数

Min/Recommended/Max V核

3.135V / 3.3V / 3.6V

最小/最大工作温度

0°C - 70°C

Minimum/Typical/Maximum power dissipation

1.7 Watt / 4.3 Watt / 12.24 Watt

热设计功耗

11.2 Watt

Notes on Intel Pentium 133 MHz

Minimum bus frequency is 33 MHz
There is a mobile Pentium processor with the same 编号. Please use processor specification number to distinguish between desktop and mobile processors.
