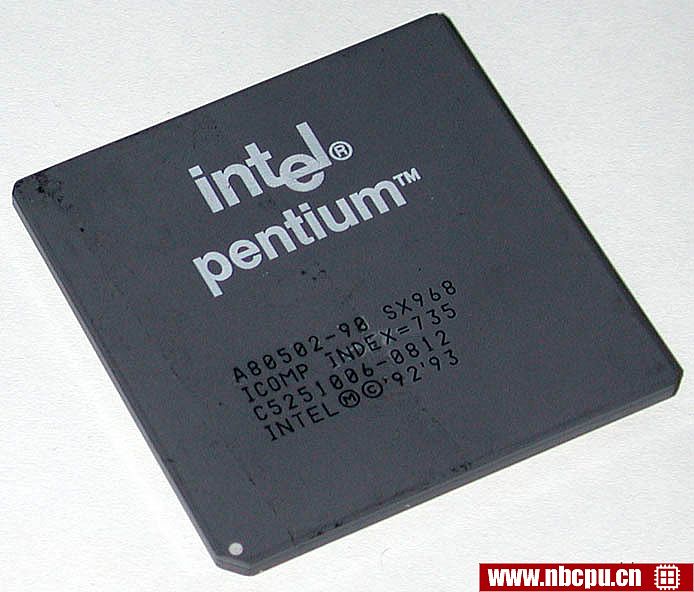

Intel Pentium 90 - A80502-90笔记本cpu

类型

CPU / Microprocessor

细分市场

Desktop

系列

Intel Pentium

CPU 编号

A80502-90 is an OEM/tray microprocessor

频率

90 MHz

总线速度

60 MHz

时钟倍频器

1.5

封装

296-pin Ceramic Staggered Pin Grid Array (SPGA)
1.95" x 1.95" (4.95 cm x 4.95 cm)

接口s

接口 5
接口 7

发布时间

7-Mar-94

ICOMP 2 index

Upgrade options

Pentium overdrive 150
Pentium MMX overdrive 150
Pentium MMX overdrive 180

S规格号

	ES/QS处理器
部件号	Q0542	Q0543	Q0611	Q0612	Q0613	Q0628	Q0644	Q0653
A80502-90	+	+	+	+	+	+	+	+

	ES/QS处理器				生产处理器
部件号	Q0654	Q0655	Q0699	Q0783	SL2WW	SX653	SX874	SX879
A80502-90	+	+	+	+	+	+	+	+

	生产处理器
部件号	SX885	SX909	SX921	SX922	SX923	SX942	SX943	SX944
A80502-90	+	+	+	+	+	+	+	+

	生产处理器
部件号	SX957	SX958	SX959	SX968	SX972	SX976	SY006
A80502-90	+	+	+	+	+	+	+

架构 / 微体系结构

微体系结构

处理器内核

P54C

核心步进

B1 (Q0542, Q0543, Q0613, SX874, SX879, SX885, SX909)
B3 (Q0611, Q0612, Q0628, SX921, SX922, SX923, SX942, SX943, SX944)
B5 (Q0653, Q0654, Q0655, SX957, SX958, SX959)
C2 (Q0699, SX968)
E0 (Q0783, SL2WW, SY006)

CPUIDs

521 (Q0542, Q0613, SX879, SX885, SX909)
522 (Q0611, Q0612, Q0628, SX921, SX922, SX923)
524 (Q0653, Q0654, Q0655, SX957, SX958, SX959)
525 (Q0699, SX968)
526 (Q0783, SL2WW, SY006)
2521 (Q0543, SX874)
2522 (Q0611, Q0612, SX942, SX943, SX944)
2524 (Q0653, Q0654, Q0655, SX957, SX958, SX959)
2525 (Q0699, SX968)
2526 (Q0783, SL2WW, SY006)

制造工艺

0.6 micron
3.2 million transistors

数据位宽

32 bit

Data bus width

64 bit

浮点单元

Integrated

1级缓存大小

8 KB 2-way set associative code cache
8 KB 2-way set associative write-back data cache

Physical memory

4 GB

多重处理

Up to 2 processors

低功耗特性

System Management Mode
Clock Control
SL power-management features

On-chip peripherals

Memory Management Unit
Local Advanced Programmable Interrupt Controller

电/热参数

Min/Recommended/Max V核

3.135V / 3.3V / 3.6V

最小/最大工作温度

0°C - 70°C

Minimum/Typical/Maximum power dissipation

1.4 Watt / 3.5 Watt / 10.62 Watt

热设计功耗

9 Watt

Notes on Intel Pentium 90 MHz

Minimum bus frequency is 30 MHz
There is a mobile Pentium processor with the same 编号. Please use processor specification number to distinguish between desktop and mobile processors.
