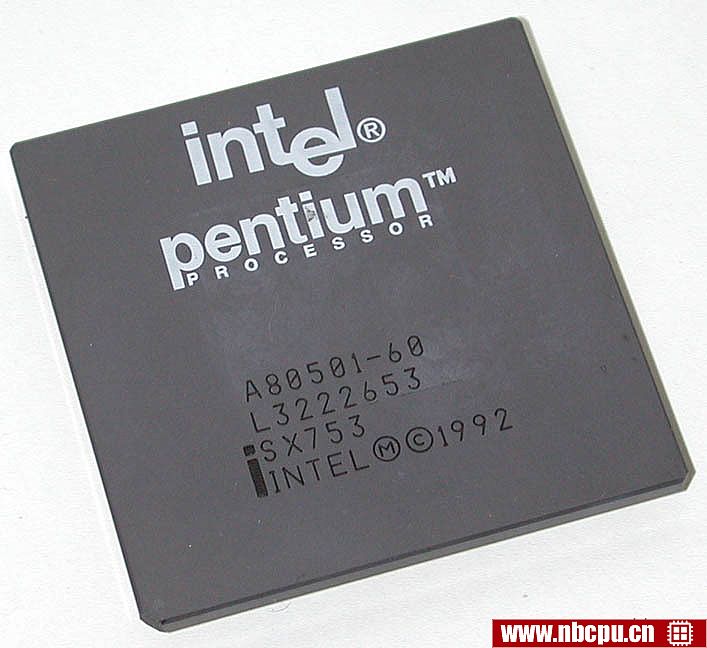

Intel Pentium 60 - A80501-60笔记本cpu

类型

CPU / Microprocessor

细分市场

Desktop

系列

Intel Pentium

CPU 编号

A80501-60 is an OEM/tray microprocessor

频率

60 MHz

总线速度

60 MHz

时钟倍频器

封装

273-pin ceramic Pin Grid Array
2.16" x 2.16" (5.49 cm x 5.49 cm)

接口

接口 4

发布时间

22-Mar-93

ICOMP index

510

Upgrade options

Pentium overdrive 133

S规格号

	ES/QS处理器
部件号	Q0352	Q0394	Q0400	Q0412	Q0436	Q0466	Q0625
A80501-60	+	+	+	+	+	+	+

	生产处理器
部件号	SX753	SX835	SX842	SX926	SX948	SX974	SZ949
A80501-60	+	+	+	+	+	+	+

架构 / 微体系结构

微体系结构

处理器内核

核心步进

B1" (Q0412, SX753)
B1' (Q0352, Q0394, Q0400)
C1 (Q0466, SX835, SZ949)
D1 (Q0625, SX948, SX974)

CPUIDs

513 (Q0352, Q0394, Q0400, Q0412, SX753)
515 (Q0466, SX835, SZ949)
517 (Q0625, SX948, SX974)

制造工艺

0.8 micron BiCMOS process, 3.1 million transistors

数据位宽

32 bit

Data bus width

64 bit

浮点单元

Integrated

1级缓存大小

8 KB 2-way set associative code cache
8 KB 2-way set associative write-back data cache

Physical memory

4 GB

多重处理

Up to 2 processors

低功耗特性

System Management Mode
SL power-management features

On-chip peripherals

Memory Management Unit
Local Advanced Programmable Interrupt Controller

电/热参数

V核

5V ± 5%

最小/最大工作温度

0°C - 70°C
75°C
80°C
85°C

Typical/Maximum power dissipation

11.9 Watt / 15.28 Watt

热设计功耗

14.6 Watt

Notes on Intel Pentium 60 MHz

Minimum bus frequency is 30 MHz
Different S-Spec 号码 have different maximum operating temperature. Please follow S-spec links for more accurate information
There was a version of Pentium 60 with 5.15 - 5.4 core voltage. Please consult S-Spec page to determine exact voltage range for your CPU.
