Intel Pentium 4 1.5 GHz - 80528PC021G0K / BX80528JK150G笔记本cpu

类型

CPU / Microprocessor

细分市场

Desktop

系列

Intel Pentium 4

CPU部件号

80528PC021G0K is an OEM/tray microprocessor
RN80528PC021G0K is an OEM/tray microprocessor
YD80528PC021G0K is an OEM/tray microprocessor
BX80528JK150G is a boxed microprocessor
BX80528JK150GR is a boxed microprocessor
BX80528JK150GR2 is a boxed microprocessor

频率

1500 MHz

总线速度

400 MHz

时钟倍频器

封装

Organic Land Grid Array (OLGA) package with Integrated Heat Spreader (IHS) on 423-pin interposer
2.1" x 2.1" (5.33 cm x 5.33 cm)

接口

接口 423 / PGA423

发布时间

Nov 20, 2000

指导价格

$819

S规格号

	ES/QS处理器
部件号	QAQ1	QBG7	QZ25
80528PC021G0K
BX80528JK150G
BX80528JK150GR
BX80528JK150GR2
RN80528PC021G0K
YD80528PC021G0K	+	+	+

	生产处理器
部件号	SL4SH	SL4SX	SL4TY	SL4WT	SL4X3	SL5SX	SL5TN
80528PC021G0K	+	+
BX80528JK150G	+		+	+	+		+
BX80528JK150GR			+		+		+
BX80528JK150GR2	+		+		+
RN80528PC021G0K						+
YD80528PC021G0K				+

架构 / 微体系结构

微体系结构

Netburst

处理器内核

Willamette

核心步进

B1 (QZ25)
B2 (QAQ1, SL4SH, SL4TY)
C1 (QBG7, SL4WT, SL4X3)
D0 (SL5SX, SL5TN)

CPUIDs

F07 (SL4SH, SL4TY)
F0A (SL4WT, SL4X3)
F12 (SL5SX, SL5TN)

制造工艺

0.18 micron
42 million transistors

模具尺寸

217mm²

数据位宽

32 bit

The number of cores

线程数

浮点单元

Integrated

1级缓存大小

12K micro-operations execution trace cache
8 KB data cache

2级缓存大小

256 KB 8-way associative full-speed on-die cache

多重处理

Uniprocessor only

特征

MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2

低功耗特性

System Management Mode
Auto-HALT mode
Stop Grant mode
Sleep mode
Deep Sleep mode

集成外设/组件

集成显卡

None

电/热参数

V核

1.7V
1.75V

最小/最大工作温度

5°C - 72°C (1.7V)
5°C - 73°C (1.75V)

最小/最大功耗

16.83 Watt (Stop Grant mode) / 69.98 Watt (1.7V)
17.33 Watt (Stop Grant mode) / 75.26 Watt (1.75V)

热设计功耗

54.7 Watt (1.7V)
57.8 Watt (1.75V)

Notes on Intel Pentium 4 1.5 GHz

Bus frequency is 100 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 400 MHz

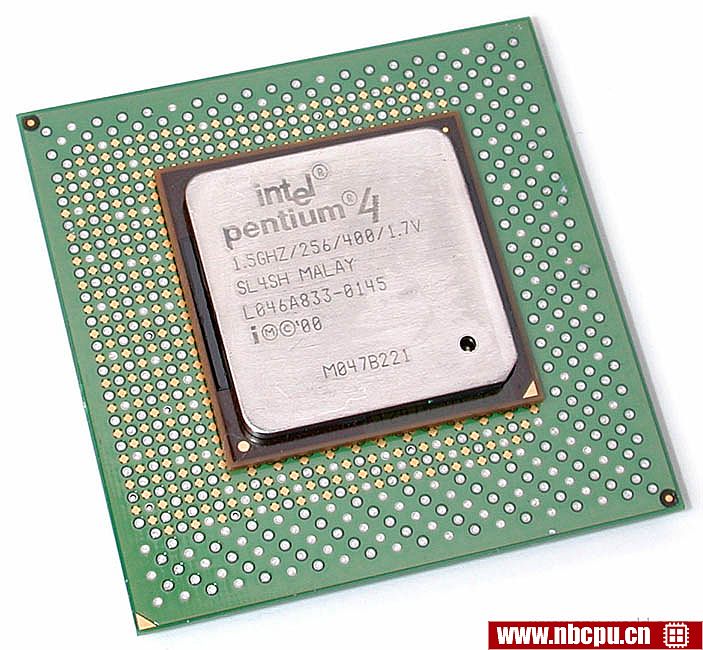

1.7V processors are marked as "1.5GHZ/256/400/1.7V"
1.75V processors are marked as "1.5GHZ/256/400/1.75V"
