Intel Pentium 4 1.4 GHz - 80528PC017G0K / BX80528JK140G笔记本cpu

类型

CPU / Microprocessor

细分市场

Desktop

系列

Intel Pentium 4

CPU部件号

80528PC017G0K is an OEM/tray microprocessor
YD80528PC017G0K is an OEM/tray microprocessor
BX80528JK140G is a boxed microprocessor
BX80528JK140GR is a boxed microprocessor
BX80528JK140GR2 is a boxed microprocessor

频率

1400 MHz

总线速度

400 MHz

时钟倍频器

封装

Organic Land Grid Array (OLGA) package with Integrated Heat Spreader (IHS) on 423-pin interposer
2.1" x 2.1" (5.33 cm x 5.33 cm)

接口

接口 423 / PGA423

发布时间

Nov 20, 2000

指导价格

$644

S规格号

	ES/QS处理器				生产处理器
部件号	QAQ2	QBG8	QU43	QY81	SL4SC	SL4SG	SL4WS	SL4X2
80528PC017G0K						+
BX80528JK140G					+	+	+	+
BX80528JK140GR					+	+
BX80528JK140GR2					+	+		+
YD80528PC017G0K	+	+	+	+			+

架构 / 微体系结构

微体系结构

Netburst

处理器内核

Willamette

核心步进

B0 (QU43)
B1 (QY81)
B2 (QAQ2, SL4SC, SL4SG)
C1 (QBG8, SL4WS, SL4X2)

CPUIDs

F07 (SL4SC, SL4SG)
F0A (SL4WS, SL4X2)

制造工艺

0.18 micron
42 million transistors

模具尺寸

217mm²

数据位宽

32 bit

The number of cores

线程数

浮点单元

Integrated

1级缓存大小

12K micro-operations execution trace cache
8 KB data cache

2级缓存大小

256 KB 8-way associative full-speed on-die cache

多重处理

Uniprocessor only

特征

MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2

低功耗特性

System Management Mode
Auto-HALT mode
Stop Grant mode
Sleep mode
Deep Sleep mode

集成外设/组件

集成显卡

None

电/热参数

V核

1.7V
1.75V

最小/最大工作温度

5°C - 70°C (1.7V)
5°C - 72°C (1.75V)

最小/最大功耗

16.66 Watt (Stop Grant mode) / 66.18 Watt (1.7V)
17.15 Watt (Stop Grant mode) / 70.69 Watt (1.75V)

热设计功耗

51.8 Watt (1.7V)
54.7 Watt (1.75V)

Notes on Intel Pentium 4 1.4 GHz

Bus frequency is 100 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 400 MHz

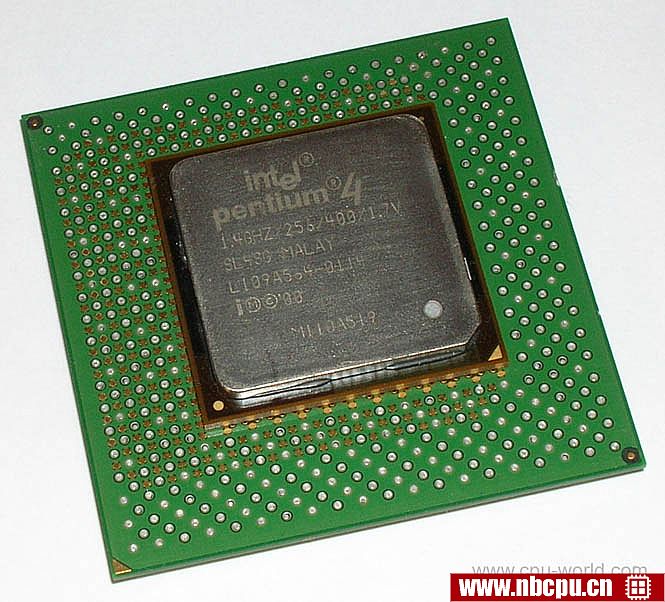

1.7V processors are marked as "1.4GHZ/256/400/1.7V"
1.75V processors are marked as "1.4GHZ/256/400/1.75V"
