Intel Ultra low voltage Pentium M 773 RJ80536UC0132M / LE80536UC0132M基本资料
类别:CPU |
制造商:Intel |
家族:Pentium M |
产品:Intel Pentium M 735 RH80536GC0292M (BXM80536GC1700F) |
类型 |
CPU / Microprocessor |
细分市场 |
Mobile |
系列 |
Intel Pentium M Dothan |
型号 |
773 |
CPU部件号 |
- RJ80536UC0132M is an OEM/tray microprocessor
- LE80536UC0132M is an OEM/tray microprocessor in lead free package
|
频率 |
1300 MHz |
总线速度 |
400 MHz |
时钟倍频器 |
13 |
封装 |
479-ball micro FC-BGA 1.38" x 1.38" (3.5 cm x 3.5 cm) |
接口 |
BGA479 |
S规格号 |
|
生产处理器 |
部件号 |
SL8LK |
SL8LR |
LE80536UC0132M |
|
+ |
RJ80536UC0132M |
+ |
| |
架构 / 微体系结构 |
微体系结构 |
Mobile |
处理器内核 |
Dothan |
Core stepping |
C0 (SL8LK, SL8LR) |
CPUID |
6D8 (SL8LK, SL8LR) |
制造工艺 |
0.09 micron 140 million transistors |
数据位宽 |
32 bit |
The number of cores |
1 |
线程数 |
1 |
浮点单元 |
Integrated |
1级缓存大小 |
32 KB instruction cache 32 KB write-back data cache |
2级缓存大小 |
2 MB |
多重处理 |
Uniprocessor |
特征 |
- MMX instructions
- SSE / Streaming SIMD Extensions
- SSE2 / Streaming SIMD Extensions 2
- NX / XD / Execute disable bit
|
低功耗特性 |
- AutoHALT mode
- Stop Grant mode
- Sleep mode
- Deep Sleep mode
- Deeper Sleep mode
- Dynamic FSB power down
- Enhanced SpeedStep technology
|
集成外设/组件 |
集成显卡 |
None |
电/热参数 |
V核 |
0.876V - 0.956V |
最小/最大工作温度 |
0°C - 100°C |
Maximum power dissipation |
9.48 Watt 9.93 Watt |
热设计功耗 |
5.5 Watt |
Notes on Intel Pentium M 773 |
- Bus frequency is 100 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 400 MHz
- The part LE80536UC0132M is RoHS compliant
- In the lowest frequency mode (core voltage = 0.812V) the processor runs at 600 Mhz and has TDP 3 Watt
|

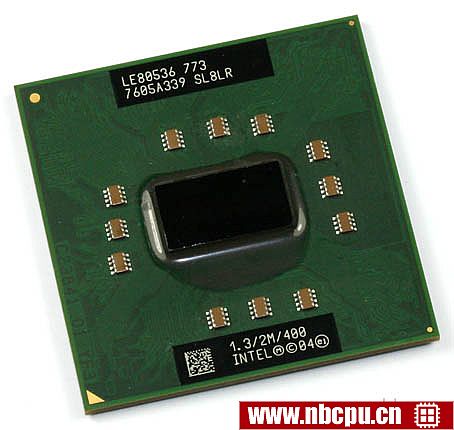

Intel Ultra low voltage Pentium M 773 RJ80536UC0132M / LE80536UC0132M图片资料
