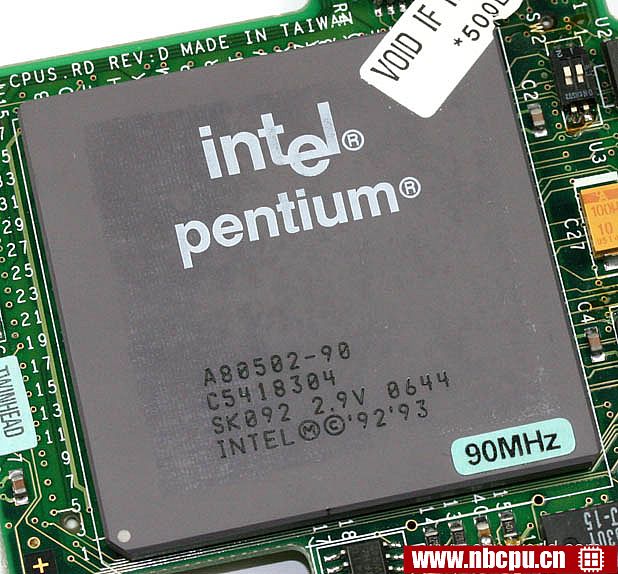

Intel Mobile Pentium 90 - A8050290笔记本cpu

类型

CPU / Microprocessor

细分市场

Mobile

系列

Intel Mobile Pentium

CPU 编号

A8050290 (mobile) is an OEM/tray microprocessor

频率

90 MHz

总线速度

60 MHz

时钟倍频器

1.5

封装

296-pin Ceramic Staggered Pin Grid Array (SPGA)
1.95" x 1.95" (4.95 cm x 4.95 cm)

接口s

接口 5
接口 7

Upgrade options

Not supported

S规格号

	ES/QS处理器		生产处理器
部件号	Q0695	Q0852	SK092	SK123
A8050290	+	+	+	+

架构 / 微体系结构

微体系结构

核心步进

mA1 (Q0695, SK092)
mA4 (Q0852, SK123)

CPUIDs

525 (Q0695, SK092)
570 (Q0852, SK123)

制造工艺

0.6 micron low-voltage BiCMOS silicon technology
3.3 million transistors

数据位宽

32 bit

Data bus width

64 bit

浮点单元

Integrated

1级缓存大小

8 KB 2-way set associative code cache
8 KB 2-way set associative write-back data cache

多重处理

Not supported

低功耗特性

System Management Mode
Clock Control
SL power-management features

On-chip peripherals

Memory Management Unit

电/热参数

V核

2.9V

V I/O or secondary

3.3V

最小/最大工作温度

0°C - 85°C

Minimum/Typical/Maximum power dissipation

1.2 Watt (Stop Grant mode) / 2.5 Watt - 3.5 Watt / 8.81 Watt

热设计功耗

7.3 Watt

Notes on Intel Mobile Pentium 90 MHz

Minimum bus frequency is 30 MHz
There is a desktop Pentium processor with the same 编号. Please use processor specification number to distinguish between desktop and mobile processors
Processor is compatible with dual power plane socket 5, and is not compatible with desktop socket 5
