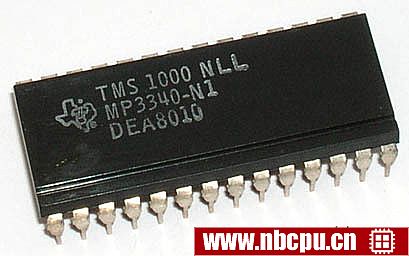

Texas Instruments TMS1000NL / TMS1000NLL / TMS1000NLP笔记本cpu

类型	Microcontroller
系列	Texas Instruments TMS1000
MCU part 号码	TMS1000NL is an OEM/tray microcontroller TMS1000NLL is an OEM/tray microcontroller TMS1000NLP is an OEM/tray microcontroller
频率	0.4 MHz
封装	28-pin plastic DIP
接口	DIP28
架构 / 微体系结构
制造工艺	P-channel MOS
数据位宽	4 bit
On-chip peripherals	Oscillator 4 input lines 11 individually addressed output lines 8-bit parallel output port
On-chip RAM	64 x 4 bits
On-chip ROM	1 KB
电/热参数
Min/Recommended/Max V核	14V / 15V / 17.5V
最小/最大工作温度	0°C - 70°C
Typical/Maximum power dissipation	0.09 Watt / 0.175 Watt

类别:MCU	制造商:Texas Instruments
家族:TMS1000	产品:Texas Instruments TMS1000NL / TMS1000NLL / TMS1000NLP
