Texas Instruments TMS7000NL-2基本资料
类别:MCU 制造商:Texas Instruments
家族:TMS7000 产品:Texas Instruments TMS7000NL-2
类型 Microcontroller
频率    5 MHz (internal)
封装 40-pin plastic DIP
接口 DIP40
架构 / 微体系结构
制造工艺 N-channel silicon-gate MOS technology
数据位宽 8 bit
On-chip peripherals
  • 13-bit timer
  • 16 bi-directional I/O lines
  • 8 input-only lines
  • 8 output only lines
On-chip RAM 128 bytes
On-chip ROM None
电/热参数
V核    5V ± 10%
最小/最大工作温度    0°C - 70°C
Typical/Maximum power dissipation 0.4 Watt / 0.825 Watt
Notes on Texas Instruments TMS7000NL-2
  • Internal clock frequency is 1/2 of external clock.

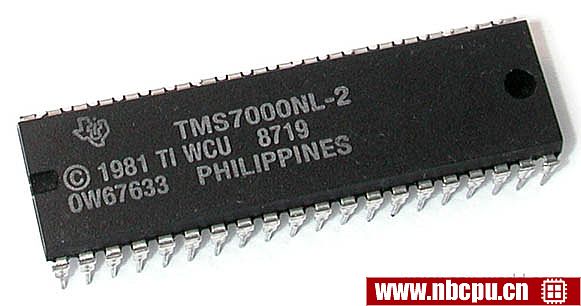

Texas Instruments TMS7000NL-2图片资料
Texas Instruments TMS7000NL-2
