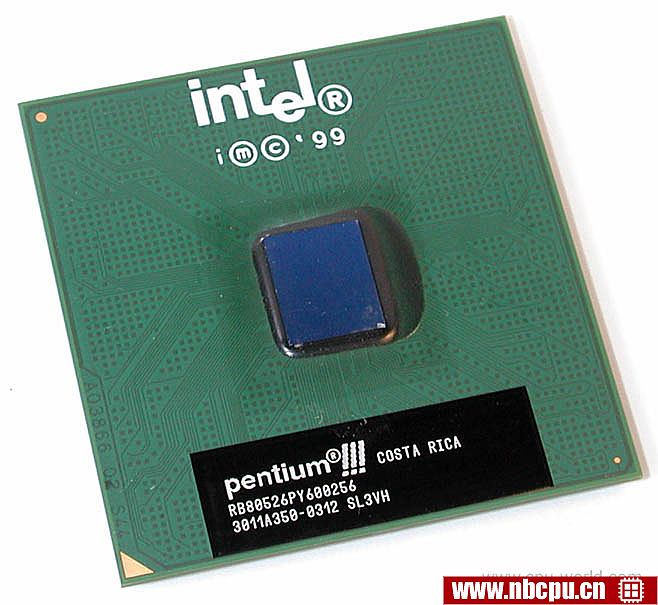

Intel Pentium III 600 - RB80526PY600256 (BX80526F600256)笔记本cpu

一般信息

类型

CPU / Microprocessor

细分市场

Desktop

系列

Intel Pentium III

型号

600E

CPU部件号

RB80526PY600256 is an OEM/tray microprocessor
BX80526F600256 is a boxed microprocessor
BX80526F600256E is a boxed microprocessor

频率

600 MHz

总线速度

100 MHz

时钟倍频器

封装

370-pin Flip-Chip Pin Grid Array (FC-PGA)
1.95" x 1.95" (4.95 cm x 4.95 cm)

接口

接口 370 / PGA370

发布时间

Oct 25, 1999

指导价格

$455

S规格号

部件号	ES/QS处理器
	QD09	QF13	QQ69
BX80526F600256
BX80526F600256E
RB80526PY600256	+	+	+

部件号	生产处理器
	SL3NL	SL3VH	SL3XU	SL45U	SL4CM	SL5BT
BX80526F600256	+			+		+
BX80526F600256E	+
RB80526PY600256	+	+	+		+	+

架构 / 微体系结构

微体系结构

处理器内核

Coppermine

核心步进

cA2 (QD09, QF13, QQ69, SL3NL, SL3VH)
cB0 (SL3XU, SL45U)
cC0 (SL4CM)
cD0 (SL5BT)

CPUIDs

681 (SL3NL, SL3VH)
683 (SL3XU, SL45U)
686 (SL4CM)
68A (SL5BT)

制造工艺

0.18 micron
28 million transistors

模具尺寸

104.6mm² (CPUID 0683h)
90mm² (CPUID 0686h)
94.7mm² (CPUID 068Ah)

数据位宽

32 bit

Data bus width

64 bit

CPU核心数

线程数

浮点单元

Integrated

1级缓存大小

16 KB instruction cache
16 KB data cache

2级缓存大小

Full-speed integrated 8-way set associative 256 KB

多重处理

Up to 2 processors

特征

MMX instructions
SSE / Streaming SIMD Extensions

低功耗特性

AutoHALT state
Stop Grant state
Sleep state
Deep Sleep state
System Management Mode

电/热参数

Min/Recommended/Max V核

1.57V / 1.65V / 1.69V
1.62V / 1.7V / 1.74V
1.67V / 1.75V / 1.79V

最小/最大工作温度

0°C - 82°C

Maximum power dissipation

20.4 Watt (1.7V核)
22.05 Watt (1.75V核)

热设计功耗

15.8 Watt (CPUID 0686h)
19.6 Watt (CPUID 068Ah)

Notes on Intel Pentium III 600E (接口 370)

The processor is usually marked as 600/256/100/1.65V, 600/256/100/1.7V or 600/256/100/1.75V, where the last number specifies processor's core voltage. If the processor is marked with RB80526PY600256 编号 then use processor specification number to identify processor's core voltage
Stepping cA2 CPUs for 接口 370 were not validated for dual-processing
