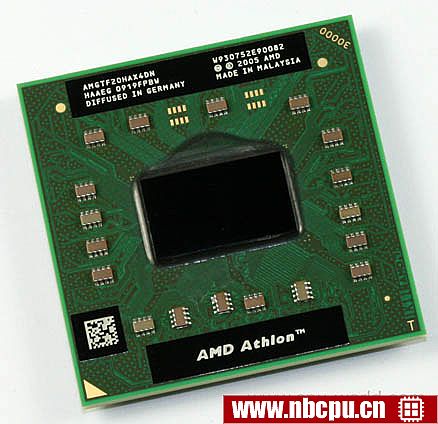

AMD Athlon 64 TF-20 - AMGTF20HAX4DN笔记本cpu

类型	CPU / Microprocessor
细分市场	Mobile
系列	AMD Athlon 64 for Notebooks
型号	TF-20
CPU 编号	AMGTF20HAX4DN is an OEM/tray microprocessor
CPU步进	CAAEG HAAEG
频率	1600 MHz
总线速度	One 800 MHz 16-bit HyperTransport link (1.6 GT/s)
时钟倍频器	8
封装	638-pin lidless micro-PGA
AMD 封装号码	30000, 30594
接口	接口 S1 (S1g1)
尺寸	1.38" x 1.38" / 3.5cm x 3.5cm
End-of-Life date	Last order date is end of 1st quarter 2010 Last shipment date is end of 3rd quarter 2010
架构 / 微体系结构
微体系结构	K8
Platform	Kite
处理器内核	Sherman
Core stepping	DH-G2
CPUID	70FC2
制造工艺	0.065 micron silicon-on-insulator (SOI) technology
数据位宽	64 bit
The number of cores	1
线程数	1
浮点单元	Integrated
1级缓存大小	64 KB 2-way set associative instruction cache 64 KB 2-way set associative data cache
2级缓存大小	512 KB 16-way set associative cache
多重处理	Uniprocessor
特征	MMX instructions Extensions to MMX 3DNow! technology Extensions to 3DNow! SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 AMD64 / AMD 64-bit technology EVP / Enhanced Virus Protection AMD-V / AMD Virtualization technology
低功耗特性	PowerNow! Technology
集成外设/组件
集成显卡	None
Memory controller	The number of controllers: 1 Memory channels: 2 Supported memory: DDR2-667 ^[1] Maximum memory bandwidth (GB/s): 10.7 ^[1]
Other peripherals	HyperTransport technology
电/热参数
Maximum operating temperature	95°C
热设计功耗	15 Watt
Notes on AMD Athlon 64 TF-20
[1] - Information is not confirmed

类别:CPU	制造商:AMD
家族:K8	产品:AMD Athlon 64 TF-20 - AMGTF20HAX4DN
