Intel Xeon MP 7030 - NE80560KG0722MH (BX80560KG2800F)基本资料
类别:CPU |
制造商:Intel |
家族:Xeon |
产品:Intel Xeon MP 7030 - NE80560KG0722MH (BX80560KG2800F) |
类型 |
CPU / Microprocessor |
细分市场 |
Server |
系列 |
Intel Xeon |
型号 |
7030 |
CPU部件号 |
- NE80560KG0722MH is an OEM/tray microprocessor
- BX80560KG2800F is a boxed microprocessor
|
频率 |
2800 MHz |
总线速度 |
800 MHz |
时钟倍频器 |
14 |
封装 |
604-pin Flip Chip micro-PGA4 (FC-mPGA4) 2.1" x 2.1" (5.33 cm x 5.33 cm) |
接口 |
接口 604 (mPGA604) |
发布时间 |
Nov 1, 2005 |
指导价格 |
$1980 |
S规格号 |
|
生产处理器 |
部件号 |
SL8UB |
NE80560KG0722MH |
+ | |
架构 / 微体系结构 |
微体系结构 |
NetBurst |
处理器内核 |
Paxville MP |
Core stepping |
A0 (SL8UB) |
CPUID |
F48 (SL8UB) |
制造工艺 |
0.09 micron |
数据位宽 |
64 bit |
The number of cores |
2 |
线程数 |
4 |
浮点单元 |
Integrated |
1级缓存大小 |
2 Execution Trace caches 2 x 16 KB data caches |
2级缓存大小 |
2 x 1 MB 8-way associative caches |
Physical memory |
64 GB |
Virtual memory |
1 TB |
多重处理 |
Up to 4 processors |
特征 |
- MMX instructions
- SSE / Streaming SIMD Extensions
- SSE2 / Streaming SIMD Extensions 2
- SSE3 / Streaming SIMD Extensions 3
- EM64T / Extended Memory 64 technology / Intel 64
- NX / XD / Execute disable bit
- HT / Hyper-Threading technology
- VT-x / Virtualization technology
|
低功耗特性 |
- HALT mode
- Enhanced HALT mode
- Stop Grant mode
- Enhanced SpeedStep technology
|
集成外设/组件 |
集成显卡 |
None |
电/热参数 |
V核 |
1.2625V - 1.4125V |
最小/最大工作温度 |
5°C - 76°C |
最小/最大功耗 |
84.07 Watt (Enhanced HALT mode) / 183.83 Watt |
热设计功耗 |
165 Watt |
Notes on Intel Xeon 7030 |
- Bus frequency is 200 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 800 MHz
- This part can scale up to 32 processors in some non-Intel systems.
|

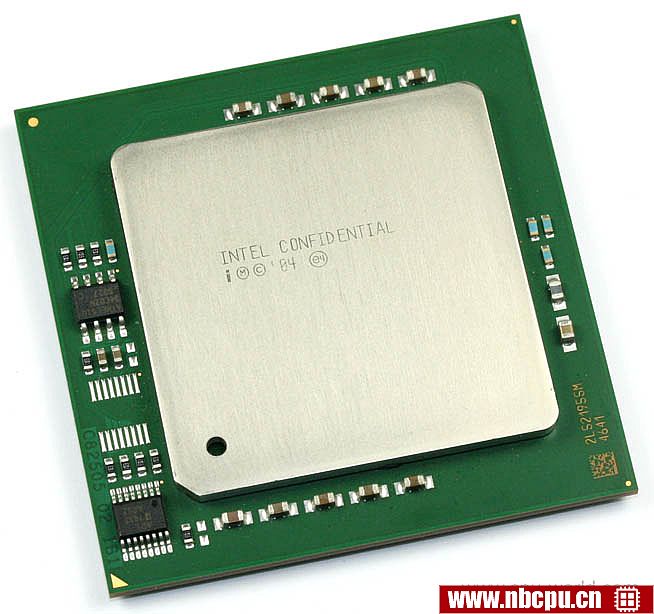

Intel Xeon MP 7030 - NE80560KG0722MH (BX80560KG2800F)图片资料
