Intel Pentium 4 2.4 GHz - RK80532PE056512 / BX80532PE2400D基本资料
类别:CPU 制造商:Intel
家族:Pentium 4 产品:Intel Pentium 4 2.4 GHz - RK80532PC056512 / BX80532PC2400D
类型 CPU / Microprocessor
细分市场 Desktop
系列 Intel Pentium 4
CPU部件号
  • RK80532PE056512 is an OEM/tray microprocessor
  • BX80532PE2400D is a boxed microprocessor
频率    2400 MHz
总线速度    533 MHz
时钟倍频器    18
封装 478-pin Flip-Chip Pin Grid Array (FC-PGA2)
接口 接口 478 / mPGA478B
发布时间 May 6, 2002
S规格号
  ES/QS处理器 生产处理器
部件号 QMU6 SL67Z SL684 SL6D7 SL6DV SL6EF SL6EU SL6PC
BX80532PE2400D   + + + + + + +
RK80532PE056512 + +   + +     +

  生产处理器
部件号 SL6Q8 SL6RZ SL6SH
BX80532PE2400D + + +
RK80532PE056512   + +
架构 / 微体系结构
微体系结构 Netburst
处理器内核    Northwood
核心步进    B0 (SL67Z, SL684, SL6D7, SL6EU)
C1 (QMU6, SL6DV, SL6EF, SL6RZ, SL6SH)
D1 (SL6PC, SL6Q8)
CPUIDs F24 (SL67Z, SL684, SL6D7, SL6EU)
F27 (QMU6, SL6DV, SL6EF, SL6RZ, SL6SH)
F29 (SL6PC, SL6Q8)
制造工艺 0.13 micron CMOS technology
55 million transistors
数据位宽 32 bit
The number of cores 1
线程数 1
浮点单元 Integrated
1级缓存大小    Approximately 12K micro-ops execution trace cache
8 KB data cache
2级缓存大小    512 KB 8-way associative full-speed on-die cache
特征
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
低功耗特性
  • System Management Mode
  • Auto-HALT mode
  • Stop Grant mode
  • Sleep mode
集成外设/组件
集成显卡 None
电/热参数
V核    1.475V - 1.525V
最小/最大工作温度    5°C - 70°C (1.5V核)
5°C - 71°C (all others)
Maximum power dissipation    69.97 Watt (1.5V核)
72.5 Watt (1.525V核)
热设计功耗    57.8 Watt (1.5V)
59.8 Watt (1.525V)
Notes on Intel Pentium 4 2.4 GHz
  • Bus frequency is 133 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 533 MHz
  • To distinguish this processor from Pentium 4 2.4 GHz with 400 MHz FSB, this CPU is often referred to as Pentium 4 2.4B GHz

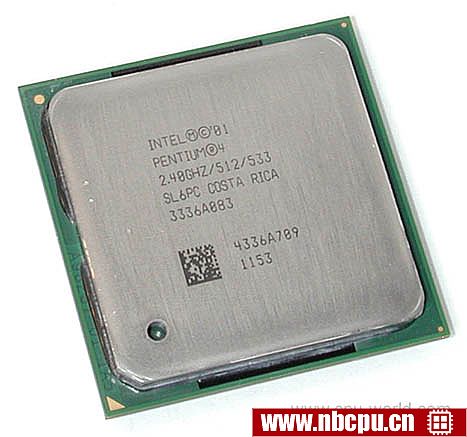

Intel Pentium 4 2.4 GHz - RK80532PE056512 / BX80532PE2400D图片资料
Intel Pentium 4 2.4 GHz - RK80532PE056512 / BX80532PE2400D
