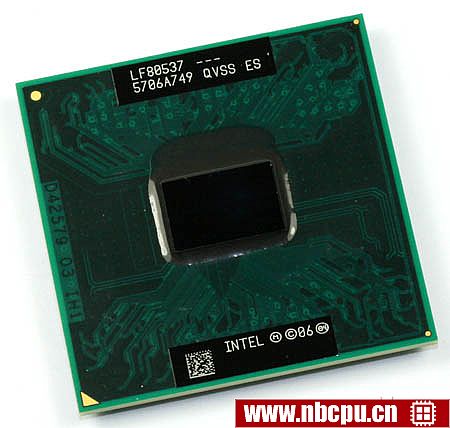

Intel Celeron M 550 LF80537NE0411M (BX80537550)笔记本cpu

类型

CPU / Microprocessor

细分市场

Mobile

系列

Intel Celeron M

型号

550

CPU部件号

LF80537NE0411M is an OEM/tray microprocessor
BX80537550 is a boxed microprocessor without fan and heatsink

频率

2000 MHz

总线速度

533 MHz

时钟倍频器

封装

478-pin micro FC-PGA
1.38" x 1.38" (3.5 cm x 3.5 cm)

接口

接口 P

发布时间

Sep 5, 2007

指导价格

$134

S规格号

	ES/QS处理器	生产处理器
部件号	QVSS	SLA2E	SLAJ9
BX80537550		+
LF80537NE0411M	+	+	+

架构 / 微体系结构

微体系结构

Core

Platform

Santa Rosa
Santa Rosa Refresh

处理器内核

Merom

核心步进

A1 (QVSS, SLA2E)
G0 (SLAJ9)

CPUIDs

661 (QVSS)
10661 (SLA2E)

制造工艺

0.065 micron process with copper interconnect

数据位宽

64 bit

The number of cores

线程数

浮点单元

Integrated

1级缓存大小

32 KB instruction cache
32 KB write-back data cache

2级缓存大小

1 MB

多重处理

Uniprocessor

特征

MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
NX / XD / Execute disable bit
EM64T / Extended Memory 64 technology / Intel 64

低功耗特性

Core C1/AutoHalt, C1/MWAIT, C2 and C3 modes
Stop Grant mode
Sleep mode
Deep Sleep mode
FSB low-power enhancements

集成外设/组件

集成显卡

None

电/热参数

V核

0.95V - 1.3V

最小/最大工作温度

0°C - 100°C

最小/最大功耗

26.41 Watt (Deep Sleep mode) / 45.31 Watt

热设计功耗

27 Watt
31 Watt

Notes on Intel Celeron M 550

Bus frequency is 133 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 533 MHz
This part is also offered as an embedded microprocessor
