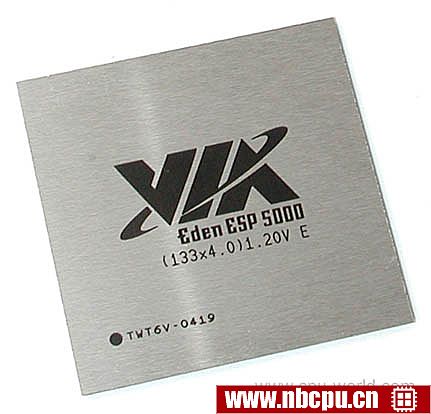

VIA Eden ESP 5000 (133 x 4.0) 1.20V笔记本cpu

类型	CPU / Microprocessor
系列	VIA Eden ESP
CPU 编号	Eden ESP 5000 (133 x 4.0) 1.20V is an OEM/tray microprocessor
频率	533 MHz
总线速度	133 MHz
时钟倍频器	4
封装	368-ball enhanced BGA 1.38" x 1.38" (3.5 cm x 3.5 cm)
接口	BGA368
架构 / 微体系结构
处理器内核	Samuel 2
制造工艺	0.15 micron CMOS technology
模具尺寸	52mm²
浮点单元	Integrated
1级缓存大小	64 KB 4-way set associative instruction cache 64 KB 4-way set associative data cache
2级缓存大小	64 KB 4-way set-associative unified exclusive cache
Pipeline	12 stage
多重处理	Not supported
特征	MMX instructions 3DNow! technology
低功耗特性	Quickstart state Sleep state Deep Sleep state Deeper Sleep state
电/热参数
V核	1.2V
最小/最大工作温度	0°C - 85°C
Minimum/Typical/Maximum power dissipation	1 Watt (Sleep mode) / 2.8 Watt / 5 Watt
Notes on VIA Eden ESP 533 MHz
Processors, marked with 'S' on the top, do not have clock multiplier locked Floating-Point Unit runs at 1/2 of CPU speed Maximum case temperature is 100 degrees Celsius for parts marked 100°

类别:CPU	制造商:VIA
家族:Eden ESP	产品:VIA Eden ESP 5000 (133 x 4.0) 1.20V
