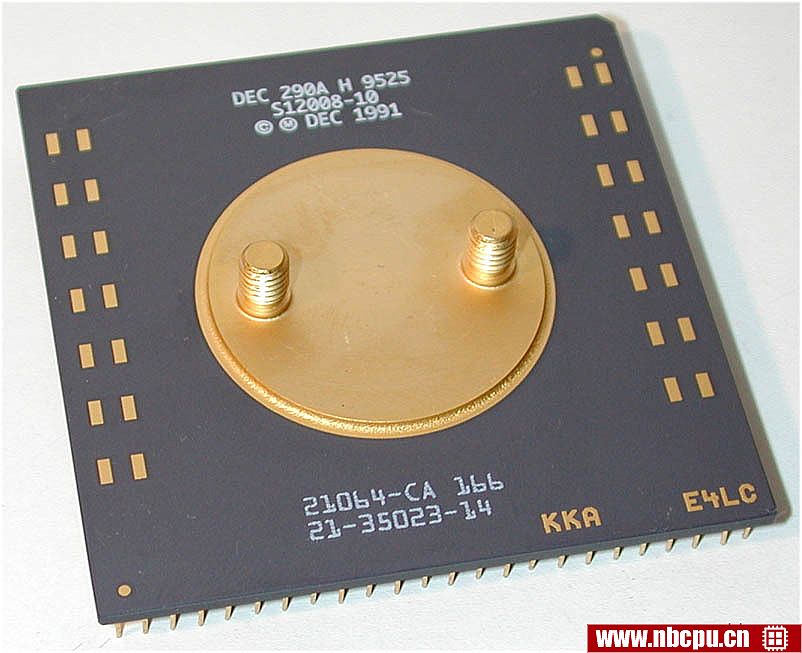

DEC Alpha 21064 166MHz - 21-35023-14 / 21064-CA 166笔记本cpu

类型	CPU / Microprocessor
系列	DEC 21064
CPU部件号	21-35023-14 is an OEM/tray microprocessor 21064-CA is an OEM/tray microprocessor
频率	166 MHz
总线速度	20.75 MHz - 83 MHz
时钟倍频器	from 2 to 8
封装	431-pin ceramic PGA
尺寸	2.43" x 2.43" / 6.17cm x 6.17cm
发布时间	November 1992
架构 / 微体系结构
微体系结构	Alpha AXP
处理器内核	EV4 (0.75 micron) EV4S (0.675 micron)
制造工艺	0.75 micron CMOS 0.675 micron CMOS 1.7 million transistors
数据位宽	64 bit
Data bus width	64 or 128 (selectable) bit
浮点单元	Integrated
1级缓存大小	8 KB direct-mapped code cache 8 KB direct-mapped write-through data cache
Physical memory	16 GB
Pipeline	7-stage for integer operations 10-stage for FP operations
On-chip peripherals	Clock generator Memory management unit Parity and ECC generators and checkers
电/热参数
V核	3.3V ± 5%
V I/O or secondary	3.3V (can interface to 5V logic)
Maximum operating temperature	90°C
Maximum power dissipation	22.32 Watt

类别:CPU	制造商:DEC
家族:21064	产品:DEC Alpha 21064 166MHz - 21-35023-14 / 21064-CA 166
