Fujitsu MBL8086-C / MBL8086 (ceramic)基本资料

类别:CPU	制造商:NEC
家族:8086	产品:Fujitsu MBL8086-C / MBL8086 (ceramic)

类型	CPU / Microprocessor
系列	Fujitsu 8086
CPU部件号	MBL8086 is a 编号 marked on the chip MBL8086-C is an order number
频率	5 MHz
封装	40-pin ceramic DIP
接口	DIP40
尺寸	2" x 0.59" / 5.08cm x 1.51cm
架构 / 微体系结构
制造工艺	N-channel, depletion load, silicon gate technology
数据位宽	16 bit
Physical memory	1 MB
电/热参数
V核	5V ± 10%
最小/最大工作温度	0°C - 70°C
Maximum power dissipation	1.87 Watt
Notes on Fujitsu MBL8086-C
Minimum operating frequency is 2 MHz

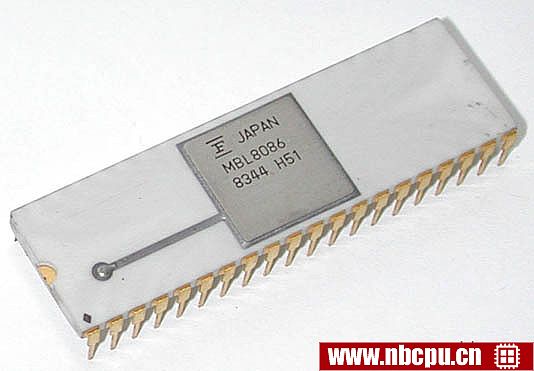

Fujitsu MBL8086-C / MBL8086 (ceramic)图片资料

Fujitsu MBL8086-C / MBL8086 (ceramic)
