Motorola MC6803U4P基本资料
类别:MCU 制造商:Motorola
家族:680x 产品:Motorola XC6801L1
类型 Microcontroller
系列 Motorola 680x
MCU 编号
  • MC6803U4P is an OEM/tray microcontroller
频率    1 MHz
封装 40-pin plastic DIP
接口 DIP40
架构 / 微体系结构
制造工艺 High-density N-channel, silicon gate (HMOS)
数据位宽 8 bit
Physical memory 64 KB
On-chip peripherals
  • Serial communications interface
  • parallel I/O
  • 16-bit six-function programmable timer
  • internal clock generator
On-chip RAM 192 (32 standby)
On-chip ROM 0
电/热参数
V核    5V ± 5%
最小/最大工作温度    0°C - 70°C
最小/最大功耗    0.015 Watt (Standby) / 1.2 Watt

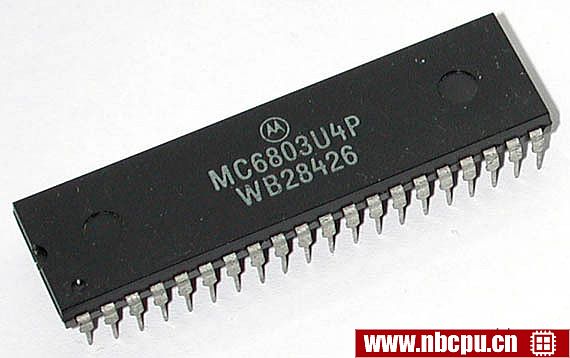

Motorola MC6803U4P图片资料
Motorola MC6803U4P
