Fujitsu MBL8086-1-C / MBL8086-1 (ceramic)基本资料
类别:CPU 制造商:Intel
家族:8086 产品:Fujitsu MBL8086-C / MBL8086 (ceramic)
一般信息
类型 CPU / Microprocessor
系列 Fujitsu 8086
CPU部件号
  • MBL8086-1 is a 编号 marked on the chip
  • MBL8086-1-C is an order number
频率    10 MHz
封装 40-pin ceramic DIP
接口 DIP40
尺寸 2" x 0.59" / 5.08cm x 1.51cm
架构 / 微体系结构
制造工艺 N-channel, depletion load, silicon gate technology
数据位宽 16 bit
Physical memory 1 MB
电/热参数
V核    5V ± 5%
最小/最大工作温度    0°C - 70°C
Maximum power dissipation    1.84 Watt
Notes on Fujitsu MBL8086-1-C
  • Minimum operating frequency is 2 MHz

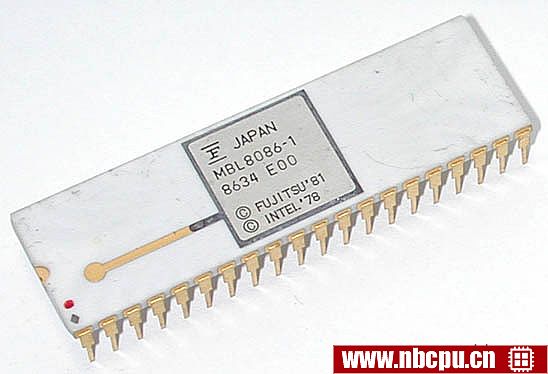

Fujitsu MBL8086-1-C / MBL8086-1 (ceramic)图片资料
Fujitsu MBL8086-1-C / MBL8086-1 (ceramic)
