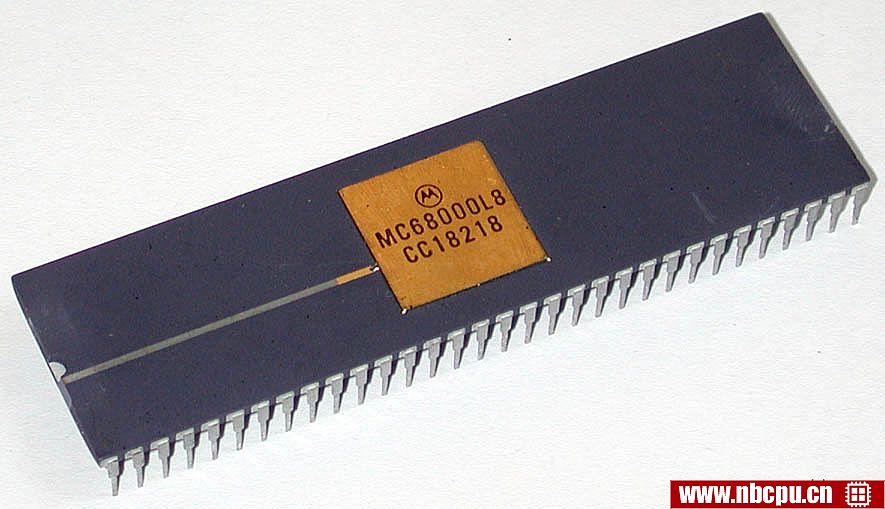

Motorola MC68000L8 / MC68000L8D / MC68000L8DS笔记本cpu

一般信息
类型	CPU / Microprocessor
系列	Motorola 68000
CPU部件号	MC68000L8 is a processor with standard screening MC68000L8D is a processor with burn-in screening MC68000L8DS is a processor with burn-in screening and high temperature testing
MC68000L8 masks	3A72E 4C91E CC1 GN7
MC68000L8D mask	GN7
MC68000L8DS mask	GN7
频率	8 MHz
封装	64-pin side-brazed ceramic DIP 3.2" x 0.885" (8.2 cm x 2.26 cm)
接口	DIP64
架构 / 微体系结构
制造工艺	HMOS
数据位宽	32 bit
Data bus width	16 bit
浮点单元	None
Physical memory	16 MB
电/热参数
V核	5V ± 5%
最小/最大工作温度	0°C - 70°C
Maximum power dissipation	1.5 Watt
Notes on Motorola MC68000L8
Minimum processor frequency is 4 MHz

类别:CPU	制造商:Hitachi
家族:68000	产品:Motorola XC68000L (SN807)
