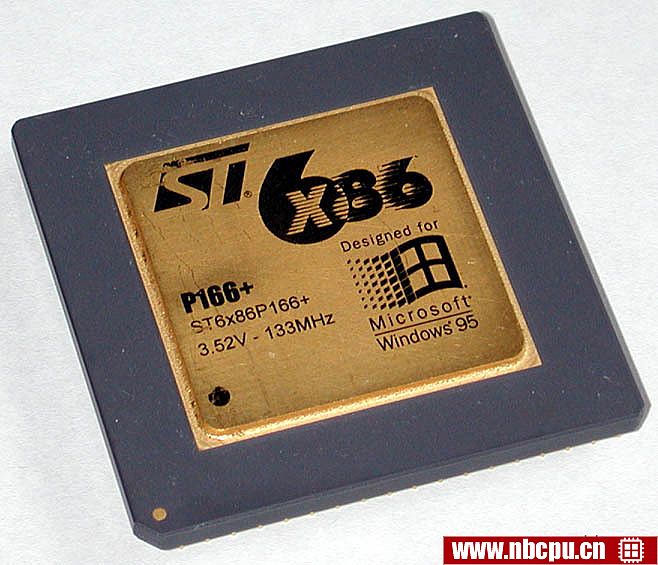

ST ST6x86P166+ / ST6x86P166+HS笔记本cpu

一般信息
类型	CPU / Microprocessor
系列	ST 6x86
CPU部件号	ST6x86P166+ is a 编号 marked on the chip ST6x86P166+HS is an order number
频率	133 MHz (rated 166)
总线速度	66 MHz
时钟倍频器	2
封装	296-pin Staggered Ceramic Pin Grid Array with heat spreader
接口	SPGA296
尺寸	1.95" x 1.95" / 4.96cm x 4.96cm
架构 / 微体系结构
数据位宽	32 bit
Data bus width	64 bit
浮点单元	Integrated
1级缓存大小	256 bytes fully associative primary code cache 16 KB 4-way set associative unified data/code write-back cache
Physical memory	4 GB
Pipeline	7 stages
低功耗特性	Suspend mode Stop clock mode
电/热参数
Min/Recommended/Max V核	3.15V / 3.52V / 3.7V
最小/最大工作温度	0°C - 70°C
Minimum/Typical/Maximum power dissipation	0.4 Watt (Suspend mode) / 19.36 Watt / 24.42 Watt
Notes on ST ST6x86P166+
Compatible with socket P54C processors

类别:CPU	制造商:Cyrix
家族:6x86	产品:ST ST6x86P166+ / ST6x86P166+HS
