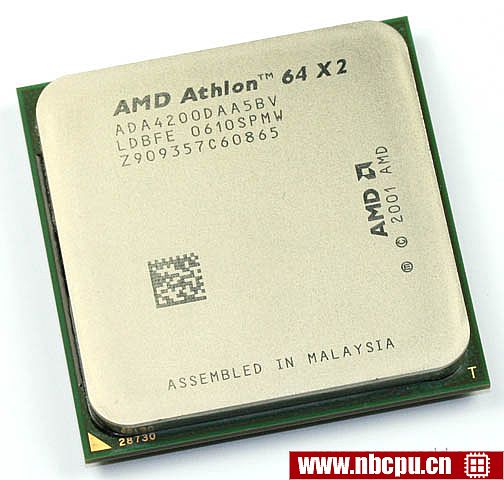

AMD Athlon 64 X2 4200+ - ADA4200DAA5BV (ADA4200BVBOX)笔记本cpu

类型	CPU / Microprocessor
细分市场	Desktop
系列	AMD Athlon 64 X2
型号	4200+
CPU部件号	ADA4200DAA5BV is an OEM/tray microprocessor ADA4200BVBOX is a boxed microprocessor with fan and heatsink
CPU步进	ADBHE CDBFE CDBHE LDBFE LDBHE
频率	4200+ (rated) 2200 MHz (real)
时钟倍频器	11
封装	939-pin lidded organic microPGA
AMD 封装 number	28730
接口	接口 939
尺寸	1.57" x 1.57" / 4cm x 4cm
发布时间	May 31, 2005
指导价格	$537
架构 / 微体系结构
微体系结构	K8
处理器内核	Manchester
Core stepping	E4
CPUID	20FB1
制造工艺	0.09 micron 150 million transistors
数据位宽	64 bit
CPU核心数	2
线程数	2
浮点单元	Integrated
1级缓存大小	2 x 64 KB 2-way set associative instruction caches 2 x 64 KB 2-way set associative data caches
2级缓存大小	2 x 512 KB exclusive 16-way set associative caches
Physical memory	1 TB
Virtual memory	256 TB
多重处理	Uniprocessor
特征	MMX instructions 3DNow! technology SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 AMD64 / AMD 64-bit technology EVP / Enhanced Virus Protection
低功耗特性	Halt state Stop Grant state Cool'n'Quiet technology
集成外设/组件
集成显卡	None
Memory controller	The number of controllers: 1 Memory channels: 2 Supported memory: DDR
Other peripherals	HyperTransport link
电/热参数
V核	1.3V / 1.35V
Maximum operating temperature	49°C - 71°C
热设计功耗	89 Watt
Notes on AMD Athlon 64 X2 4200+ (接口 939, rev. E4)
In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. 热设计功耗 in the minimum P-state is 37.6 Watt
