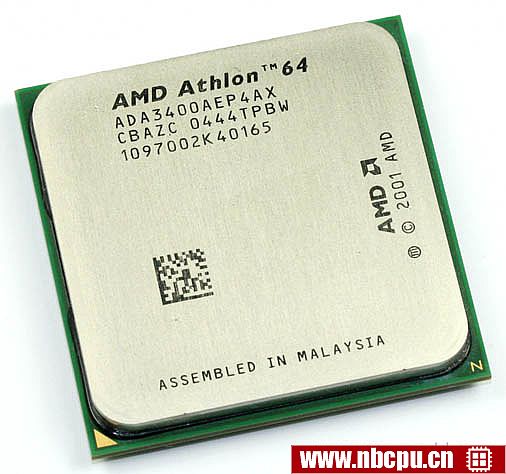

AMD Athlon 64 3400+ - ADA3400AEP4AX (ADA3400AXBOX)笔记本cpu

类型	CPU / Microprocessor
细分市场	Desktop
系列	AMD Athlon 64
型号	3400+
CPU部件号	ADA3400AEP4AX is an OEM/tray microprocessor ADA3400AXBOX is a boxed microprocessor with fan and heatsink
CPU步进	ABASC CBAEC CBASC CBAXC CBAZC LBAZC
频率	3400+ (rated) 2400 MHz (real)
时钟倍频器	12
封装	754-pin lidded microPGA 1.57" x 1.57" (4 cm x 4 cm)
AMD 封装 number	27962
接口	接口 754
架构 / 微体系结构
微体系结构	K8
处理器内核	NewCastle
Core stepping	DH-CG
CPUID	FC0
制造工艺	0.13 micron silicon-on-insulator (SOI) technology
数据位宽	64 bit
CPU核心数	1
线程数	1
浮点单元	Integrated
1级缓存大小	64 KB 2-way set associative instruction cache 64 KB 2-way set associative data cache
2级缓存大小	512 KB exclusive 16-way set associative cache
Physical memory	1 TB
Virtual memory	256 TB
多重处理	Uniprocessor
特征	MMX instructions Extensions to MMX 3DNow! technology Extensions to 3DNow! SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 AMD64 / AMD 64-bit technology EVP / Enhanced Virus Protection
低功耗特性	Halt state Stop Grant state Cool'n'Quiet technology
集成外设/组件
集成显卡	None
Memory controller	The number of controllers: 1 Memory channels: 1 Supported memory: DDR
Other peripherals	One 16-bit HyperTransport link with speeds up to 800 MHz
电/热参数
V核	1.5V
Maximum operating temperature	70°C
热设计功耗	89 Watt
Notes on AMD Athlon 64 3400+ (rev. CG, AX)
In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. 热设计功耗 in the minimum P-state is 22 Watt
