AMD K6-2 300 MHz - AMD-K6 3D/300AFR笔记本cpu

类型	CPU / Microprocessor
细分市场	Desktop
系列	AMD K6-2

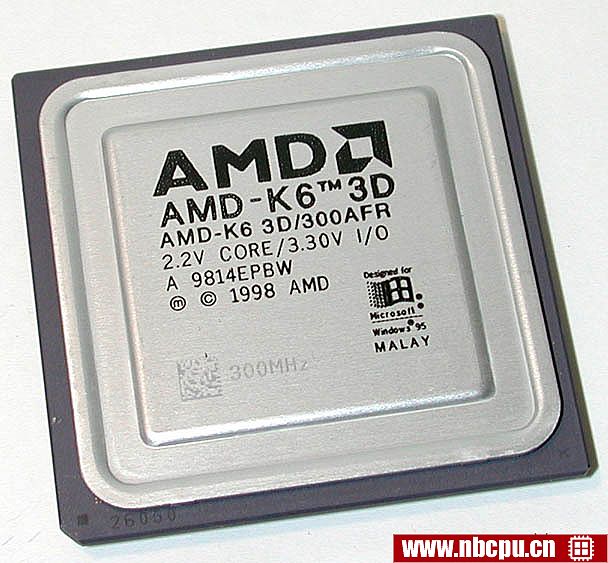

CPU 编号	AMD-K6 3D/300AFR is an OEM/tray microprocessor
频率	300 MHz
总线速度	66 MHz or 100 MHz
时钟倍频器	4.5 (66 MHz bus) 3 (100 MHz bus)
封装	321-pin ceramic staggered PGA 1.95" x 1.95" (4.95 cm x 4.95 cm)
接口s	接口 7 (66 MHz bus) Super 7 (100 MHz bus)
发布时间	28-May-98
指导价格	$281
架构 / 微体系结构
微体系结构	K6
处理器内核	Chompers
CPUID	580
制造工艺	0.25 micron 9.3 million transistors
数据位宽	32 bit
浮点单元	Integrated
1级缓存大小	32 KB code with 20 KB pre-decode cache 32 KB writeback data
Physical memory	4 GB
Pipeline	6 stage
特征	MMX instructions 3DNow! technology
低功耗特性	Halt state Stop Grant state Stop Grant Inquire state Stop Clock state
电/热参数
V核	2.2V ± 0.1V
Min/Recommended/Max V I/O or secondary	3.135V / 3.3V / 3.6V
最小/最大工作温度	0°C - 70°C
Minimum/Typical/Maximum power dissipation	3.5 Watt (Stop Clock mode) / 10.35 Watt / 17.2 Watt
Notes on AMD K6-2 300 MHz
AMD "K6 3D" processor was renamed to "K6-2" shortly before the processor release. As a result, only small number of K6-2 processors with "K6 3D" markings were released. This processor supports both 66 MHz (接口 7) and 100 MHz (Super 7) bus frequences. For 66 MHz bus speed use 4.5x clock multiplier, for 100 MHz bus speed use 3x clock multiplier.
