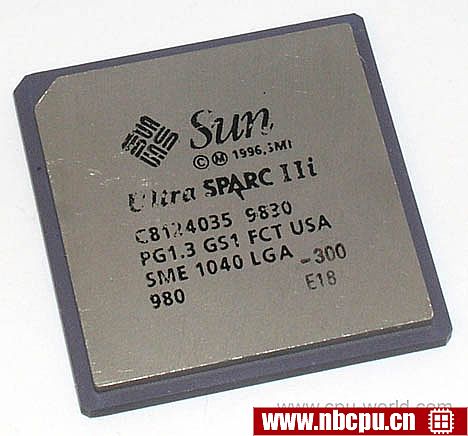

Sun Microsystems UltraSparc IIi 300 MHz - SME1040LGA-300笔记本cpu

一般信息
类型	CPU / Microprocessor
细分市场	Server
系列	Sun Microsystems UltraSparc IIi
CPU 编号	SME1040LGA-300 is an OEM/tray microprocessor
频率	300 MHz
总线速度	100 MHz (UPA64S interface) 75 MHz (memory interface, typical)
时钟倍频器	3 (UPA64S interface) 4 (memory interface, typical)
封装	587-land ceramic LGA
接口	LGA587
尺寸	1.48" x 1.48" / 3.75cm x 3.75cm
发布时间	January 13, 1998
指导价格	$470
架构 / 微体系结构
处理器内核	Sabre
制造工艺	0.35 micron 5-layer metal CMOS process
数据位宽	64 bit
浮点单元	Integrated
1级缓存大小	16 KB 2-way set associative code cache 16 KB write-through direct-mapped data cache
多重处理	Uniprocessor
特征	Visual Instruction Set
On-chip peripherals	Memory Controller Unit Level 2 cache controller PCI bus controller I/O memory management unit
电/热参数
Min/Recommended/Max V核	2.52V / 2.6V / 2.68V
V I/O or secondary	3.3V ± 5%
最小/最大工作温度	0°C - 105°C
Typical/Maximum power dissipation	27.4 Watt / 39.88 Watt
Notes on Sun Microsystems UltraSparc IIi 300 MHz
L2 cache controller supports from 256KB to 2MB of external cache memory Secondary cache operates at 1/2 of the CPU frequency
