Intel Mobile Pentium 4-M 1.6 GHz - RH80532GC025512 (BXM80532GC1600D)笔记本cpu

类型

CPU / Microprocessor

细分市场

Mobile

系列

Intel Mobile Pentium 4-M

CPU部件号

RH80532GC025512 is an OEM/tray microprocessor
BXM80532GC1600D is a boxed microprocessor without fan and heatsink

频率

1600 MHz

总线速度

400 MHz

时钟倍频器

封装

478-pin Flip-Chip Pin Grid Array (FC-PGA)
1.38" x 1.38" (3.5 cm x 3.5 cm)

接口

接口 478 / mPGA478B

发布时间

Mar 4, 2002

S规格号

	ES/QS处理器			生产处理器
部件号	QIF4	QMX3	QRS3	SL5YU	SL5ZY	SL6CG	SL6FF
BXM80532GC1600D				+	+
RH80532GC025512	+	+	+	+		+	+

架构 / 微体系结构

微体系结构

Netburst

处理器内核

Northwood

核心步进

B0 (QMX3, SL5YU, SL5ZY)
B0-Shrink (SL6CG)
C1 (QRS3, SL6FF)

CPUIDs

F24 (SL5YU, SL5ZY, SL6CG)
F27 (QRS3, SL6FF)

制造工艺

0.13 micron CMOS technology
55 million transistors

数据位宽

32 bit

The number of cores

线程数

浮点单元

Integrated

1级缓存大小

Approximately 12K micro-ops execution trace cache

2级缓存大小

512 KB

特征

MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
Thermal Monitor

低功耗特性

SpeedStep technology
Auto-Halt mode
Stop Grant mode
Sleep mode
Deep Sleep mode
Deeper Sleep mode
Address bus powerdown

集成外设/组件

集成显卡

None

电/热参数

V核

1.3V

最小/最大工作温度

0°C - 100°C

最小/最大功耗

13.18 Watt (Stop Grant mode) / 36.76 Watt

热设计功耗

30 Watt

Notes on Intel Mobile Pentium 4-M 1.6 GHz

The processor runs at 1.2 GHZ in battery-optimized mode (1.2V核)
Bus frequency is 100 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 400 MHz

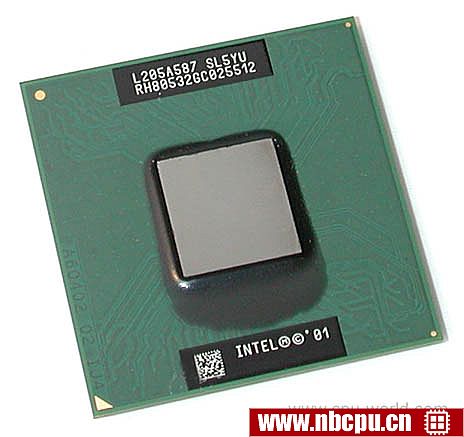

The processor is usually marked as RH80532 1600/512

类别:CPU	制造商:Intel
家族:Mobile Pentium 4-M	产品:Intel Mobile Pentium 4-M 1.6 GHz - RH80532GC025512 (BXM80532GC1600D)
